Virtual Assp Product and Product Examples

Product

MAX 10 virtual ASSP BoC Model

Product 1

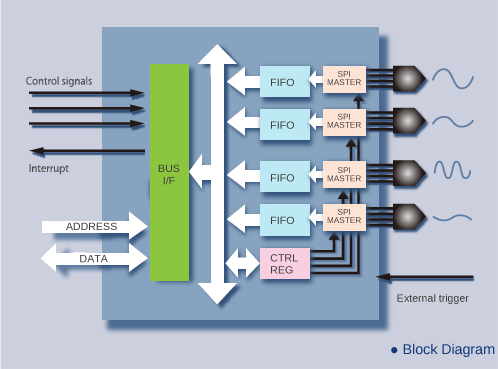

Sync SPI Master 8ch for ADC10M08SCE144C8G

ADIS801MT01 is developed in conjunction with a low-speed, low-cost CPU to acquire a large number of sensor data “simultaneously” at “high speed”.

Specification
  • Bus I/F : SRAM
  • Sensor I/F : SPI
    ・SPI CLK up to 25 MHz
    ・Data 8, 16, 24, 32 bits
    ・SPI mode 0 to 3

  • Receive buffer : 1KB/channel
  • Sampling Trigger : Hard/Soft
Order information

製品番号チップ単体:
NDR-ADIS801MT01

評価プラットフォーム:
NDR-ADIS801MT01-KIT01

Product 2

GPIO/TIMER/UART(10M08SCE144C8G)

DC3A01MT01 is packaged with three discontinued ICs in one package. DC3A01MT01 is developed with register compatibility so that software resources can be used as it is.

Specification
  • Bus I/F : SRAM
  • 6821 PIA (GPIO 16bit)
  • 6840 PTM (Timer 2ch)
  • 64941 ACI (UART 1ch)

* Note: Some functions are restricted

Order information

Product number Chip stand alone:
NDR-ADIS801MT01

Evaluation platform:
NDR-ADIS801MT01-KIT01

Evaluation Board

RUFE Platform
